Electromagnetic control.

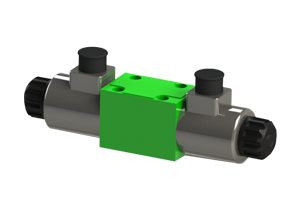

RGE distribution unit
| Rated flow, l/min | up to 60 |
| Inlet pressure, MPа | up to 32 |
| Number of spools, pcs | 1 |
Hydraulic distribution units

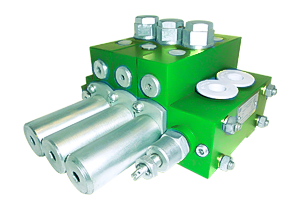

R16 distribution unit
R16 distribution unit.
| Reference flow, mm | 8 |
| Nominal pressure, MPа | 16 |
| Rated flow, l/min | 16 |
| Safety valve adjustment range, MPа | 5...20 |
| Number of sections, pcs | 1...3 |
| Spool type | 3 and 4 position |

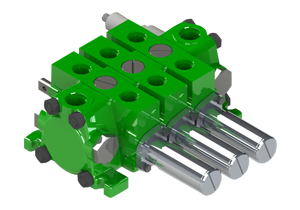

RP70 hydraulic distribution unit
RP70 hydraulic distribution unit.
| Rated flow, l/min | 70 |
| Number of sections, pcs | 1...10 |
| Spool type |
3 and 4 position, with a float position |

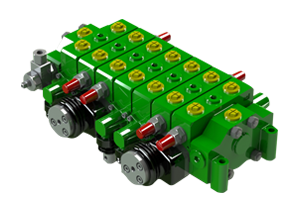

RGR 100 hydraulic distribution unit
Control options: manual, cable, mechanical joystick. Type of section valves: combined, anti-cavitation, anti-shock.
| Rated flow, l/min | 100 |
| Safety valve maximum pressure, MPа | 30 |
| Number of sections, pcs | 1...10 |
| Spool type |
3 and 4 position, with a float position |

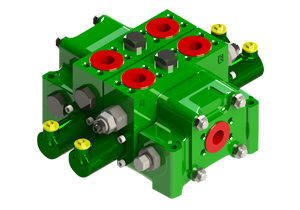

RGG 250 hydraulic distribution unit
RGG250 hydraulic distribution unit is equipped with 3- and 4-position spools. Can be equipped with anti-shock, anti-cavitation and combined valves. Hydraulic proportional control type.
| Rated flow, l/min | 250 |
| Maximum operating pressure, MPа | 30 |
| Number of sections, pcs | 1...10 |
| Control pressure, MPа | 0,5...2,5 |

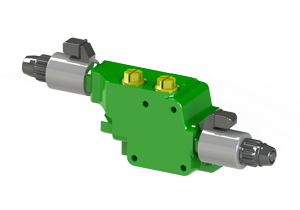

EHR electro-hydraulic regulating unit
Electro-hydraulic regulating unit with a proportional control designed to automatically adjust the operating depth. Proportional control. Mounted on RP70, RGR 100 distribution units.

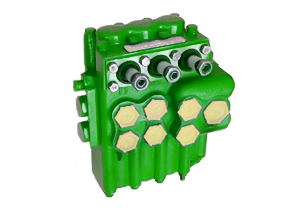

R80 hydraulic distribution unit
One-piece structure, manual control mode.
| Rated flow, l/min | 80 |
| Safety valve maximum pressure, MPа | 20 |
| Number of spools, pcs | 3 |
| Spool type | 4-position |

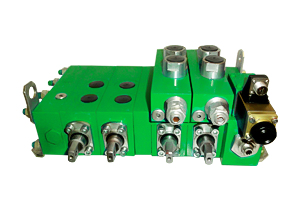

KS-3579 distribution unit
KS-3579 distribution unit.
| Rated flow, l/min | 80 |
| Reference flow, mm | 20 |
| Nominal pressure, MPа | 25 |
| Number of sections, pcs | 4 |
| Spool type | 3-position |

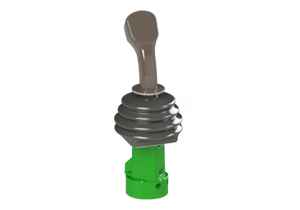

Control unit
Hydraulic joystick.
| Maximum inlet pressure, MPа | 4 |
| Reducible pressure, MPа | 0,58...1,95 |
